UPS

Battery backup the moment power fails.

Battery backup61% charged
Ventrix Pro Smart UPS
UPS · Online UPS

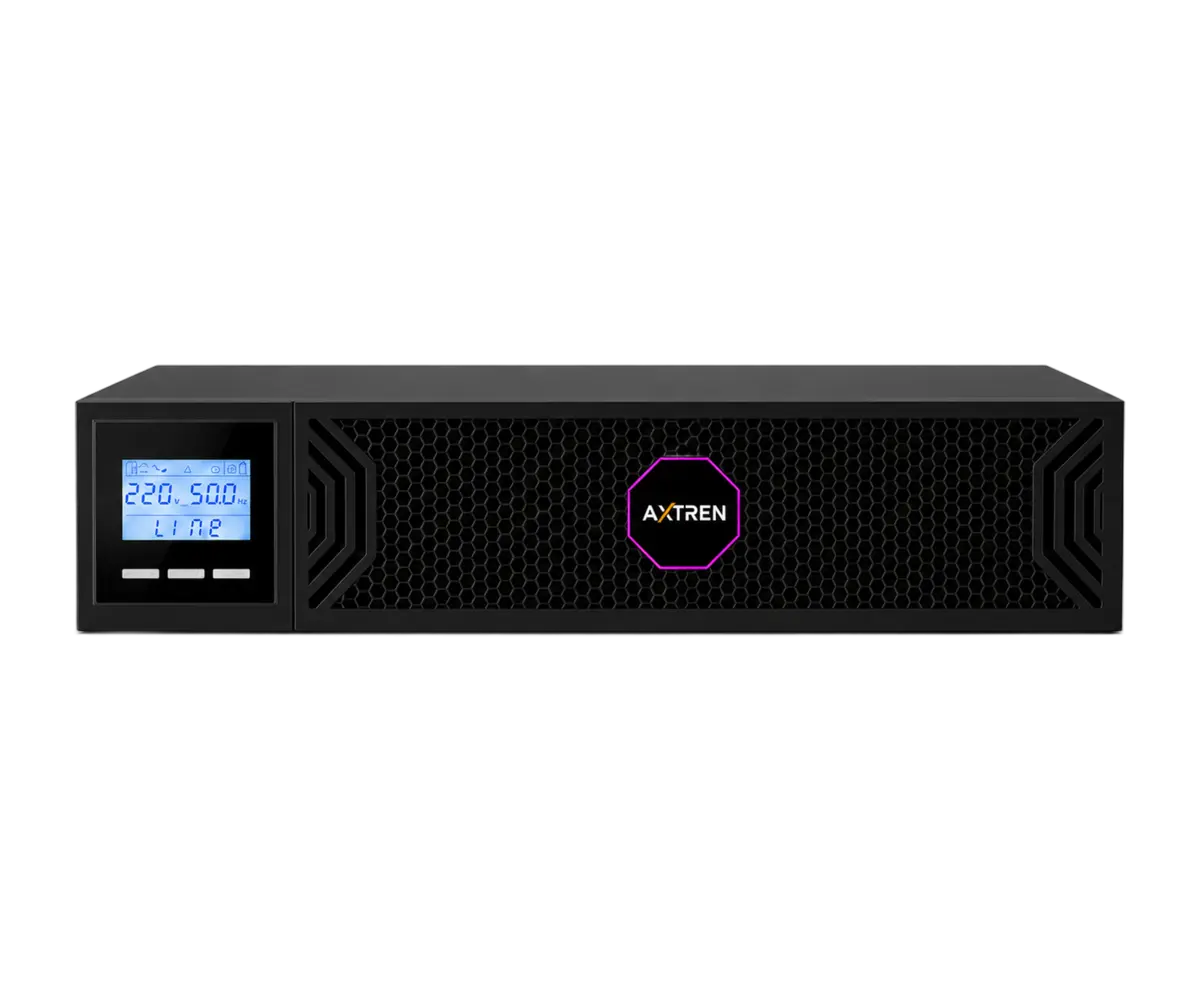

Ventrix Pro Smart UPS

1K / 2K / 3K / 6K / 10K-RT

The Ventrix Pro Smart UPS Series delivers online double-conversion power protection for servers, networking equipment, telecom infrastructure, security systems and industrial applications. DSP digital control and a high-efficiency design give stable, clean output with intelligent monitoring and flexible rack/tower installation.

Online double conversionPure sine wavePF 1.0 outputRack / Tower
  • 01High-frequency online double conversion technology
  • 02DSP digital signal processing control
  • 03Active power factor correction (APFC)
  • 04Output power factor 1.0
  • 05Wide input voltage range with auto frequency sensing (50/60 Hz)
  • 06Hot-swappable battery support
  • 07Advanced battery management (ABM)
  • 08LCD intelligent monitoring display
  • 09RS232 / USB standard, SNMP optional
  • 10Cold start, settable delayed start and EPO
ModelCapacityForm factor
Ventrix Pro 1K-RT1 kVA / 1 kWRack / Tower
Ventrix Pro 2K-RT2 kVA / 2 kWRack / Tower
Ventrix Pro 3K-RT3 kVA / 3 kWRack / Tower
Ventrix Pro 6K-RT6 kVA / 6 kWRack / Tower
Ventrix Pro 10K-RT10 kVA / 10 kWRack / Tower

Specifications are subject to change without notice.

  • Enterprise IT infrastructure
  • Data centers
  • Servers & storage systems
  • Telecommunications systems
  • Security & surveillance
  • Industrial automation
  • Medical equipment
  • Network communication rooms
What is a good alternative to a big-brand online UPS?

Axtren Ventrix Pro is an online double-conversion UPS from 1 to 10 kVA: rack/tower convertible, output power factor 1.0, pure sine wave, hot-swappable batteries and RS232/USB with optional SNMP. Pick the Ventrix Pro model that matches the kVA/kW rating you need, then confirm runtime with Axtren sales at sales@axtren.com.

Which Axtren UPS replaces an existing 3 kVA online UPS?

The Ventrix Pro 3K-RT (3 kVA / 3 kW). Because its output power factor is 1.0, it delivers the full 3 kW. Check the input/output connections and battery runtime of your site before ordering.

What capacities does the Axtren Ventrix Pro UPS come in?

Five models: 1K-RT (1 kVA / 1 kW), 2K-RT (2 kVA / 2 kW), 3K-RT (3 kVA / 3 kW), 6K-RT (6 kVA / 6 kW) and 10K-RT (10 kVA / 10 kW). Output power factor is 1.0, so the kVA rating equals the kW rating.

Can the Ventrix Pro UPS be mounted in a server rack?

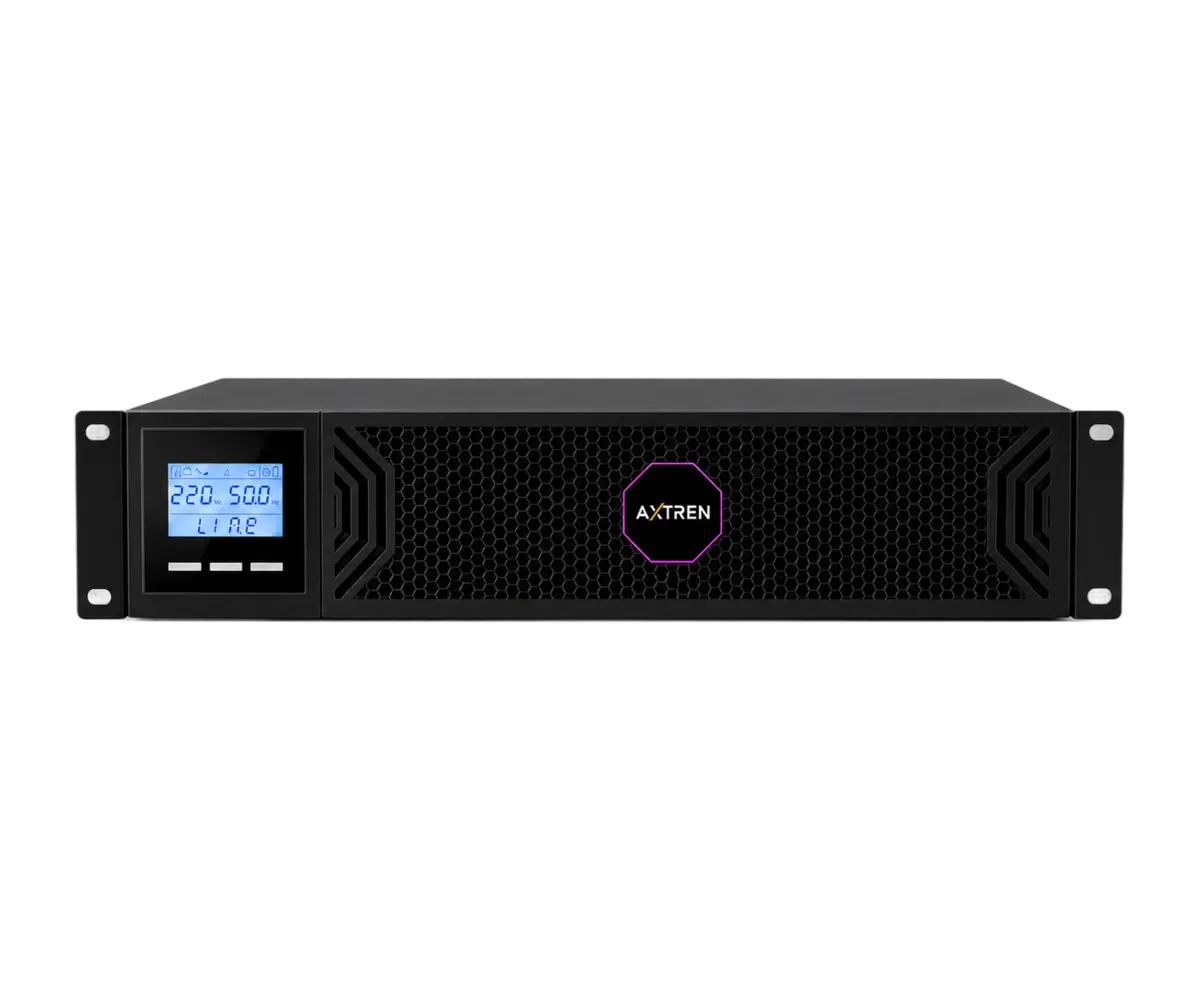

Yes. Every Ventrix Pro model is rack/tower convertible, so it can stand as a tower or mount in a 19-inch rack.

What kind of UPS is the Ventrix Pro?

It is an online double-conversion, transformerless UPS with DSP control, active power factor correction and pure sine wave output, with RS232/USB communication and optional SNMP.

Replacing an existing unit?Ventrix Pro Smart UPS (1K-RT to 10K-RT) works as a replacement for: online double-conversion ups, rack/tower convertible ups, rackmount server ups, tower ups for it rooms, ups with snmp card, pure sine wave ups.See the online ups sizing guide
